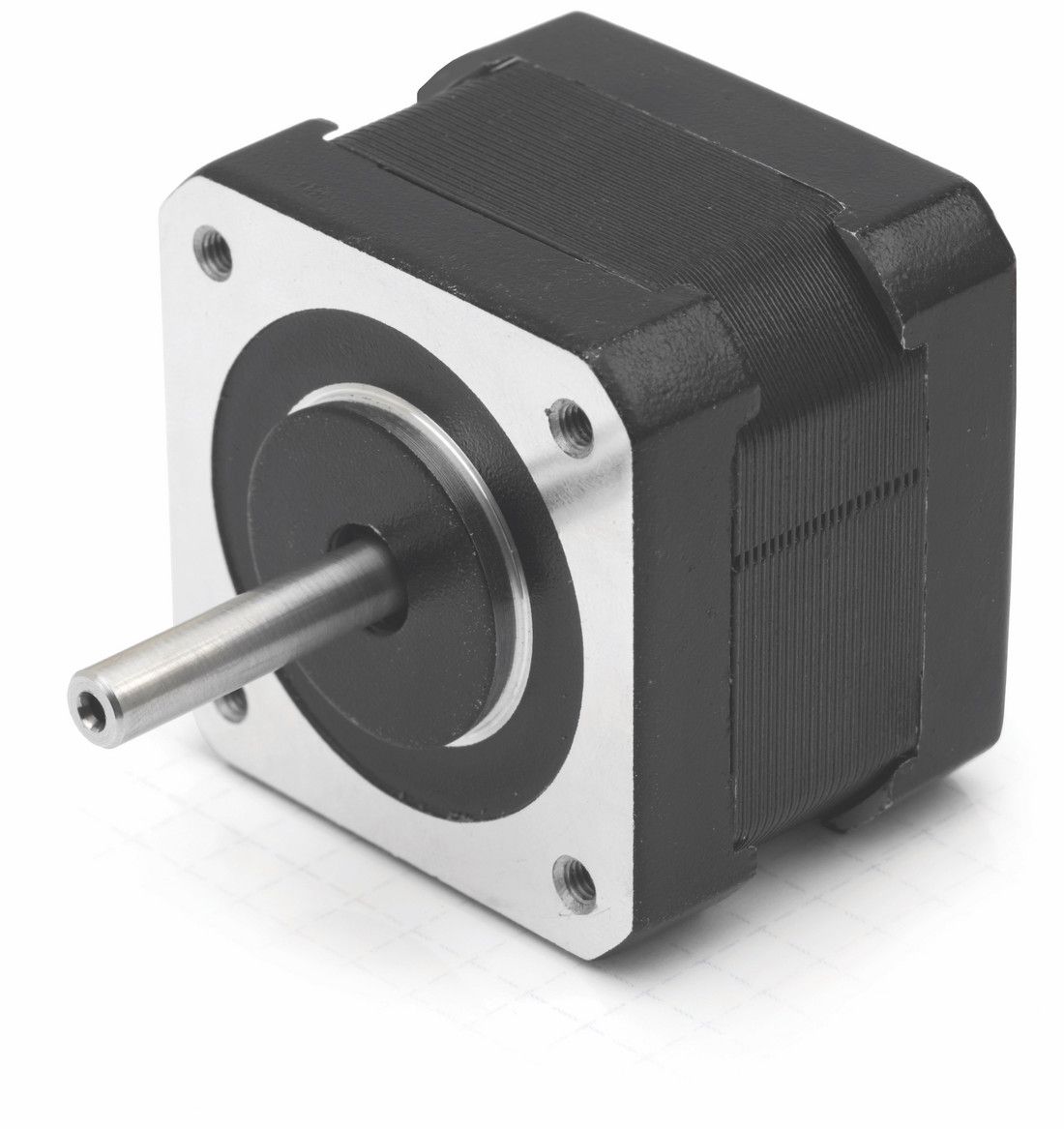

ST4209 - 0.9° - NEMA 17
Nanotec stepper motors are available in many sizes and performance variants. In addition to standard motors, customized versions, motors with integrated encoder or motors for specific applications are also available. Stepper motors have a long service life and are specially designed for applications requiring high torque and low speeds.
Product video
Parameters
3D models
Downloads
I have a question
Specifications - parameters
| Type designation | NEMA | Holding torque (Ncm) | Step angle | Current (A) | Inductance (mH) | Resistance (Ω) | Dimensions (mm) | Shaft (mm) | PDF Catalog |
|---|---|---|---|---|---|---|---|---|---|
| ST4209X1004-A | 17 | 17 | 0,9° | 1 | 18 | 8,7 | 42x42x22 | ∅5x22 |
|
| ST4209X1004-B | 17 | 17 | 0,9° | 1 | 18 | 8,7 | 42x42x22 | ∅5x22 |
|
| ST4209S0404-A | 17 | 17,6 | 0,9° | 0,42 | 7,5 | 13 | 42x42x33,5 | ∅5x22 |
|
| ST4209S0404-B | 17 | 17,6 | 0,9° | 0,42 | 7,5 | 13 | 42x42x33,5 | ∅5x22 |
|
| ST4209S1006-A | 17 | 21,21 | 0,9° | 0,67 | 4 | 4,2 | 42x42x33,5 | ∅5x22 |
|
| ST4209S1006-B | 17 | 21,21 | 0,9° | 0,67 | 4 | 4,2 | 42x42x33,5 | ∅5x22 |
|
| ST4209S1404-A | 17 | 22 | 0,9° | 1,33 | 5,2 | 2,1 | 42x42x33,5 | ∅5x22 |
|
| ST4209S1404-B | 17 | 22 | 0,9° | 1,33 | 5,2 | 2,1 | 42x42x33,5 | ∅5x22 |
|
| ST4209M1206-A | 17 | 35,36 | 0,9° | 0,85 | 4 | 3,3 | 42x42x39,5 | ∅5x22 |
|
| ST4209M1206-B | 17 | 35,36 | 0,9° | 0,85 | 4 | 3,3 | 42x42x39,5 | ∅5x22 |
|
| ST4209M1704-A | 17 | 36 | 0,9° | 1,68 | 4 | 1,9 | 42x42x39,5 | ∅5x22 |
|
| ST4209M1704-B | 17 | 36 | 0,9° | 1,68 | 4 | 1,9 | 42x42x39,5 | ∅5x22 |
|
| ST4209L1206-A | 17 | 43,84 | 0,9° | 0,85 | 4,8 | 3,3 | 42x42x47,5 | ∅5x22 |
|
| ST4209L1206-B | 17 | 43,84 | 0,9° | 0,85 | 4,8 | 3,3 | 42x42x47,5 | ∅5x22 |
|
| ST4209L1704-A | 17 | 44 | 0,9° | 1,68 | 5 | 1,8 | 42x42x47,5 | ∅5x22 |
|
| ST4209L1704-B | 17 | 44 | 0,9° | 1,68 | 5 | 1,8 | 42x42x47,5 | ∅5x22 |
|
