Reflective Encoders
Parameters
3D models
Downloads
I have a question
Specifications - parameters
| Type | Type of signal | CPR | Voltage (V) | Height (mm) | Shaft (mm) | PDF Cat. |

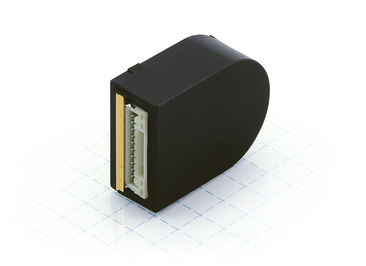

| NOE1-05-A12 (6 mm) | incremental | 500 | 5 | 10 | ∅6 |
|
| NOE1-05-A14 (5 mm) | incremental | 500 | 5 | 10 | ∅5 | |
| NOE1-05-B12 (6 mm) | incremental | 1000 | 5 | 10 | ∅6 | |
| NOE1-05-B14 (5 mm) | incremental | 1000 | 5 | 10 | ∅5 | |
| NOE1-05-C12 (6 mm) | incremental | 2000 | 5 | 10 | ∅6 | |
| NOE1-05-C14 (5 mm) | incremental | 2000 | 5 | 10 | ∅5 | |

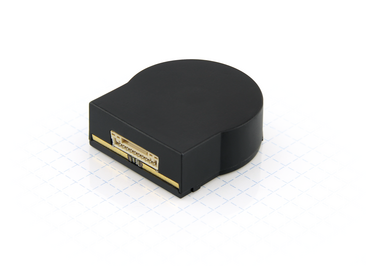

| NOE2-05-B14 (5mm) | incremental | 1000 | 5 | 11,5 | ∅5 |
|
| NOE2-05-B06 (6.35 mm) | incremental | 1000 | 5 | 11,5 | ∅6,35 | |
| NOE2-05-B10 (10 mm) | incremental | 1000 | 5 | 11,5 | ∅10 | |
| NOE2-05-K14 (5 mm) | incremental | 4000 | 5 | 11,5 | ∅5 | |
| NOE2-05-K06 (6.35 mm) | incremental | 4000 | 5 | 11,5 | ∅6,35 | |
| NOE2-05-K10 (10 mm) | incremental | 4000 | 5 | 11,5 | ∅10 | |
| NOE2-05-K15 (15 mm) | incremental | 4000 | 5 | 11,5 | ∅15 | |
| NOE2-24-B14 (5 mm) | incremental | 1000 | 24 | 11,5 | ∅5 | |
| NOE2-24-B06 (6.35 mm) | incremental | 1000 | 24 | 11,5 | ∅6,35 | |
| NOE2-24-B10 (10 mm) | incremental | 1000 | 24 | 11,5 | ∅10 | |
| NOE2-24-K14 (5 mm) | incremental | 4000 | 24 | 11,5 | ∅5 | |
| NOE2-24-K06 (6.35 mm) | incremental | 4000 | 24 | 11,5 | ∅6,35 | |
| NOE2-24-K10 (10 mm) | incremental | 4000 | 24 | 11,5 | ∅10 | |
| NOE2-24-K15 (15 mm) | incremental | 4000 | 24 | 11,5 | ∅15 |
