Specifications - parameters
| Type designation | Signal type | Resolution (CPR) | Supply voltage (V) | Height (mm) | Shaft (mm) | PDF Cat. |
|---|---|---|---|---|---|---|

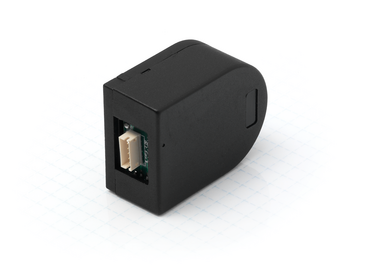

| WEDL5541-A06-KIT (6.35 mm) | Incremental | 500 | 5 | 15.7 | ∅6.35 |
|
| WEDL5541-A14-KIT (5 mm) | Incremental | 500 | 5 | 15.7 | ∅5 |
|
| WEDL5541-B06-KIT (6.35 mm) | Incremental | 1000 | 5 | 19 | ∅6.35 |
|
| WEDL5541-B14-KIT (5 mm) | Incremental | 1000 | 5 | 19 | ∅5 |
|
| WEDS5541-A06-KIT (6.35 mm) | Incremental | 500 | 5 | 15.7 | ∅6.35 |
|
| WEDS5541-A14-KIT (5 mm) | Incremental | 500 | 5 | 15.7 | ∅5 |
|
| WEDS5541-B06-KIT (6.35 mm) | Incremental | 1000 | 5 | 19 | ∅6.35 |
|
| WEDS5541-B14-KIT (5 mm) | Incremental | 1000 | 5 | 19 | ∅5 |
|

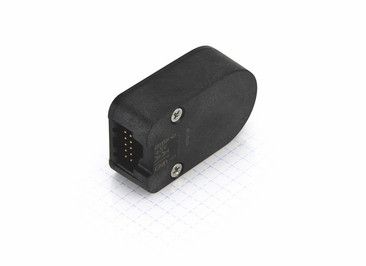

| NTO3-05-C06 (6.35mm) | Incremental | 2000 | 5 | 16.6 | ∅6.35 |
|
| NTO3-05-C14 (5 mm) | Incremental | 2000 | 5 | 16.6 | ∅5 |
|
| NTO3-05-K13-HC (8mm) | Incremental | 4000 | 5 | 16.6 | ∅8 |
|
| NTO3-05-Z06 (6.35 mm) | Incremental | 5000 | 5 | 16.6 | ∅6.35 |
|
| NTO3-05-Z14 (5 mm) | Incremental | 5000 | 5 | 16.6 | ∅5 |
|
(CPR) - number of cycles per revolution.
